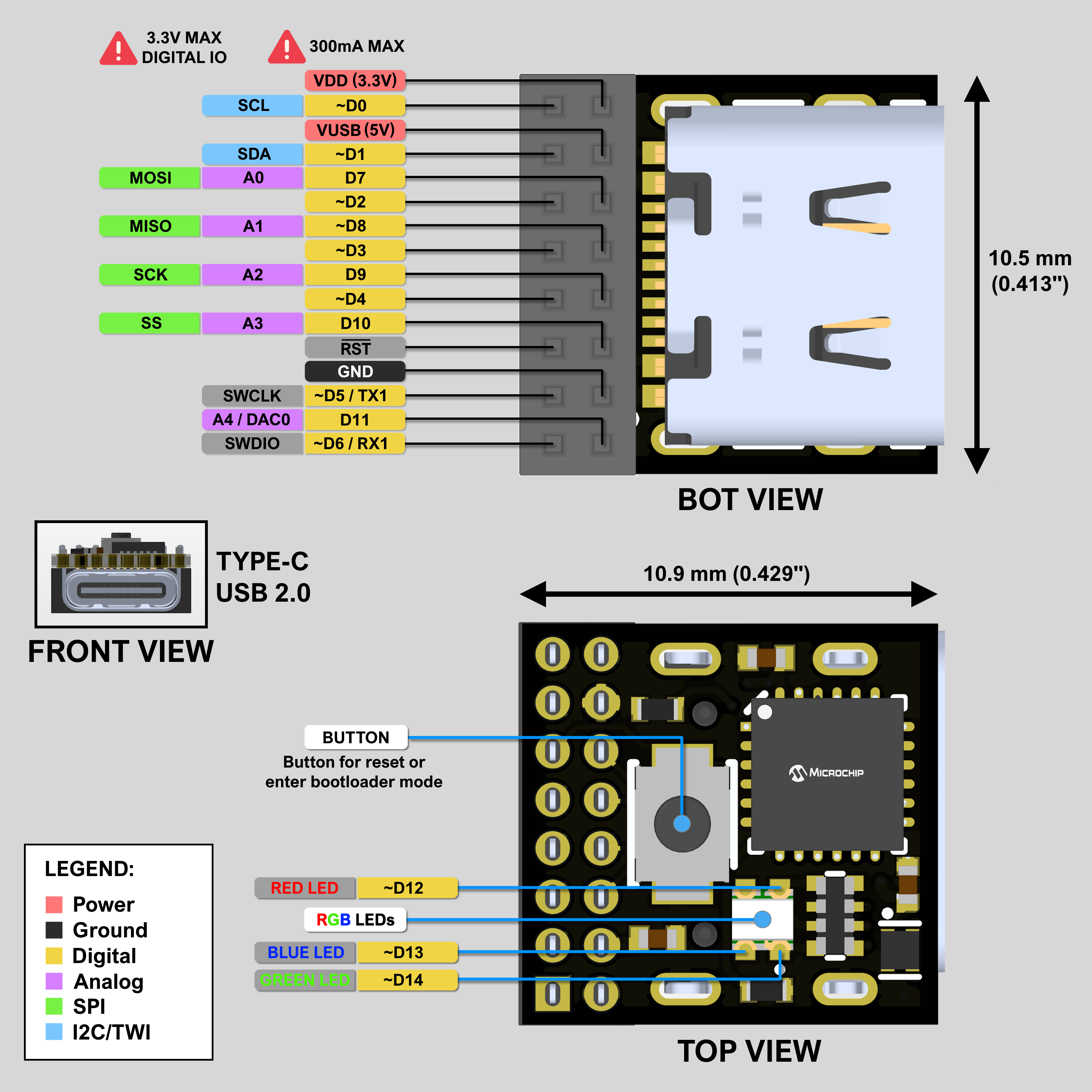

Pinout
The pinch Dev Board provides 12 GPIO pins (D0–D11) through its 16-pin, 1.27 mm header. The onboard RGB LED uses D12–D14.
caution
pinch uses 3.3 V logic. Do not apply more than 3.3 V to any GPIO pin.
The pinch Dev Board provides 12 GPIO pins (D0–D11) through its 16-pin, 1.27 mm header. The onboard RGB LED uses D12–D14.
pinch uses 3.3 V logic. Do not apply more than 3.3 V to any GPIO pin.
